Mercedes R129 SL Workshop Diagnostic Manual: Soft Top and Roll Bar (inc. Wiring Schematics)

Add to Cart


Delivery to:
Delivery & Duty: This product is ready to ship worldwide. Does not include taxes and import charges.
Order Cutoff Time: 12:30PM GMT Monday-Friday.
Dispatch Time: 1 business day(s).

Product Info

SKU 6533
Brand Mercedes-Benz
Condition Used
Condition Info Tested to be working on the donor vehicle before removal, may show some signs of wear which is reflected in the price. Please refer closely to the pictures and description.
Part Exchange None. We do not offer part exchange for this item.
Returns Period 1 month
Warranty Period 3 month

Technical Info

Master Part No *

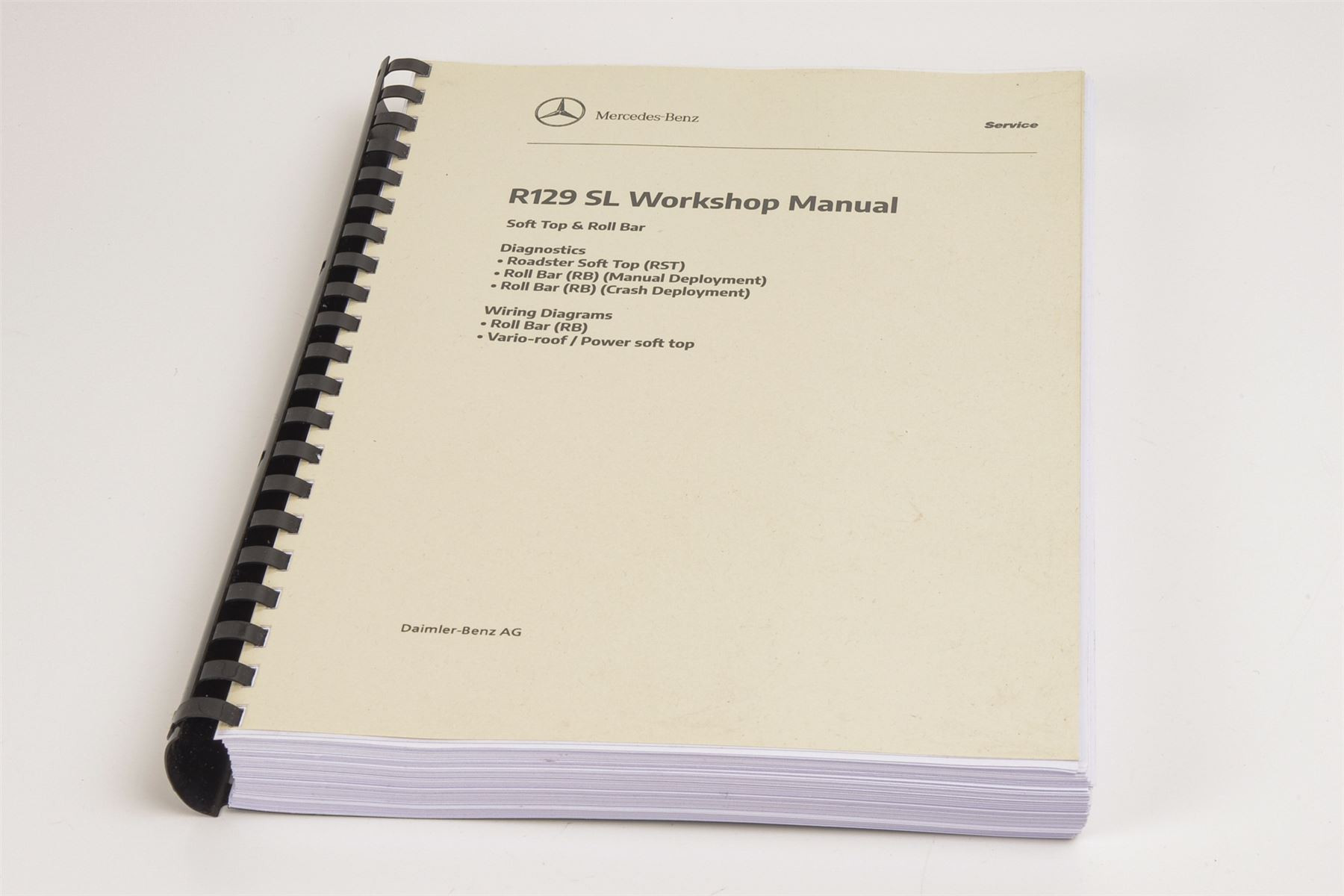

We have unearthed this 424-page physical R129 SL workshop diagnosis manual, which covers the following:


• Diagnostics
Roadster Soft Top (RST)
​Roll Bar (RB) (Manual Deployment)
Roll Bar (RB) (Crash Deployment)

• Wiring Diagrams
Roll Bar (RB)
Vario-roof / Power soft top


• Contents
• Acronyms
• Connection and Use of Test Equipment

Roadster Soft Top (RST)
• Roll Bar (RB) (Manual Deployment)
Model R129 (General)
As of 1/94

• Roll Bar (RB) (Crash Deployment)
Up to 08/95
As of 09/95

• Roll Bar (RB) - Wiring Diagrams
Roll-over bar . MY 1990 - 08/95
Roll-over bar . As of 09/95

• Vario-roof / Power soft top - Wiring Diagrams
MY 1990 - 12/93
01/94 - 08/95
As of 09/95
